Actuators

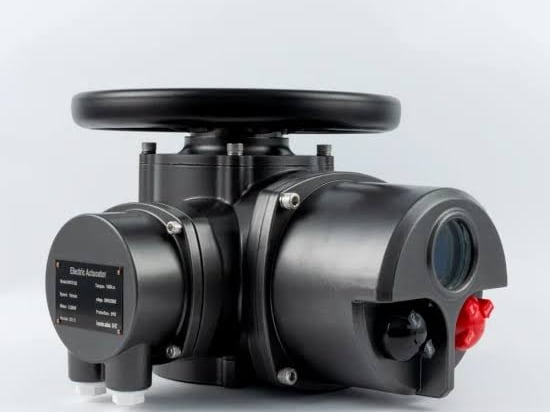

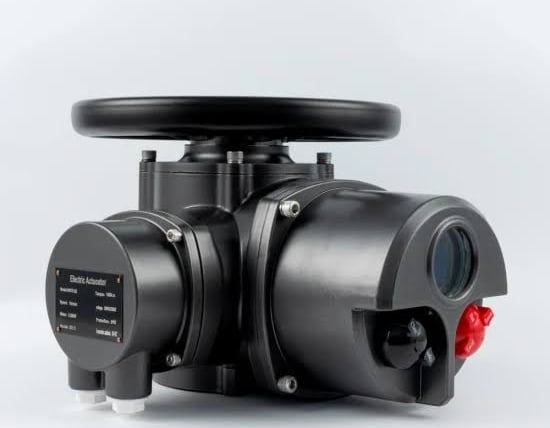

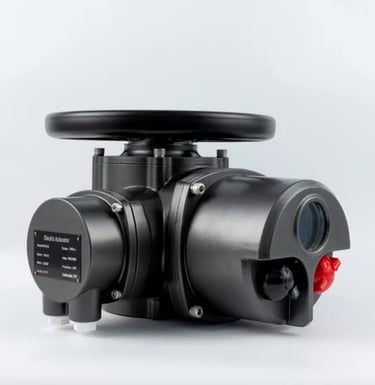

Intelligent Multi-Turn Electric Actuator

Intelligent Multi-Turn Electric Actuator

Intelligent Multi-Turn Electric Actuator from the family of actuators. Specifically designed to meet the most challenging valve automation demands of the Oil & Gas, Power, and Process industries, the is compliant with a wide range of international standards and is the ideal solution to your plant’s safety and reliability requirements.

Features

· Non-intrusive with a user-friendly push-button panel for operation, configuration, and diagnostics

· Bluetooth® wireless connectivity

· Maintenance data includes full internal datalogger records, operating data, alarms, valve torque curves, and provides important information on the performance and operating condition of valves and systems

· Configurable datalogger function for maintenance and diagnostic programs

· Customized numeric and graphic displays with multiple language options

· High-definition absolute encoder, able to read valve position even when main and backup power is lost

· Contactless digital motor speed sensor

· Wide range of advanced open-bus communication protocols:

o Modbus®

o HART®

o PROFIBUS DPV0, DPV1, and redundant DPV2

o FOUNDATION™ Fieldbus

Specifications

Power Source

Electric

Product Type

Multi-Turn Electric Actuator Actuation

Electric

Control Type

On/Off, Modulating, ESD

Valve Type

Gate, Globe, Butterfly, Ball, Rotary Plug, or Linear

Torque/Thrust

From 30Nm (22lb.ft) to 1,440Nm (1062lb.ft), multi-turn
From 330Nm to 63,000Nm (46,466lb.ft), quarter-turn
Gears can extend the upper limit of this range as high as 1,000,000Nm (737,562lb.ft)

Intelligent Regulating Valve Actuator

Intelligent Actuator Regulating Valve

Regulating / Modulating Duty, Modular Design Electric Actuators Are Designed For On / Off Valve Types That Are Infrequently Operated. They Are Designed For Use With External Controls And Motor Switchgear.

Modulating duty actuators for frequently operated positioning valves
• Suitable for fine adjustment process control valves
• Modular design means actuators can be adapted to meet user specification quickly and efficiently to achieve fast turnarounds and quick delivery
• Optimised fast response drive train
• Up to 1,200 starts per hour
• Double-sealed enclosure to IP68
• Fast and efficient maintenance due to plug and socket connections
• Torque measurement and independently adjustable torque limiting for both open and close control

modulating duty actuators (Class C) with the intelligent control module
Intelligent module can be close coupled or remote mounted up to 100 m from actuator
• Microprocessor-based controls for functionally sophisticated applications and/or for integration of actuators into fieldbus systems
• Remotely mounted Intelligent module option facilitates use in harsh environments or restricted space installations
• Non-intrusive setting of Intelligent module via local control knobs, infrared or optional Bluetooth® wireless communication
• Intelligent integral controls for integration with all types of site control system
• Multilingual user interface
• Fully configurable LCD display
• Optional analogue control input and Current Position Transmitter (CPT) 0-20 and 4-20 mA
• Optional Current Torque Transmitter (CTT) 0-20 and 4-20 mA with Digital Switch Mechanism (DSM) only
• Constant valve position monitoring with DSM even during power loss
• Double-sealed enclosure to IP68
• Fast and efficient maintenance due to plug and socket connections
• Torque measurement and independently adjustable torque limiting for both open and close control
• Network bus connectivity
• Data logging and analysis with Insight 2 software

HVAC Part-Turn Direct-Coupling Actuators

HVAC Part-Turn Direct-Coupling Actuators

Max range part-turn direct-coupling actuators with integrated manual override for applications such as valve and damper control. Compact, robust, lightweight IP66 aluminium housing for high reliability and easy installation. On-site configuration and motor running time adjustment. Max range are available in three environmental specifications

Options include spring-return failsafe, stainless steel enclosure, integrated heater for low-temperature environments and offshore/marine coating.

For automation of air dampers, fire and smoke dampers, volume control, ball valves, throttle valves and other quarter-turn armatures.

Features

• Part-turn output drive
• On/off duty as standard
• 24 - 240 VAC/VDC universal power supply
• Standard ISO flanges available
• Spring-return fail-safe option
• Ingress protection IP66/67
• Robust aluminium housing
• UL and CSA certified variants available
• Small dimension, compact, easy installation, highest protection classes, cost-effective
• Up to 5 different running times adjustable on-site
• 95° angle of rotation (5° pretension)
• 100% overload protected
• Emergency manual override
• Auto setup and selectable speeds
• Mechanical position indication
• Optional stainless steel enclosure

Electrical Linear Actuator

Long Span Shelving

A non-intrusive intelligent fail-safe linear actuator for ON/OFF and modulation control in fail-safe applications. The robust and compact mechanical spring return design can be triggered to fail-safe action either on loss of power or signal. With no dependency on super-capacitor or battery-backup, this state of the art design is widely used on valves for oil & gas, power, chemical, HVAC, and water and wastewater industries

Features

· Intelligent and non-intrusive

· On/Off (S2) and Continuous modulation (S9)

· Up to 10116 lbs (45 KN) Electric Thrust

· Mechanical driven fail-safe operation with Stem extended or Retracted

· Direct coupling on the fail-safe with the valve shaft

· Adjustable speeds

· Fail-safe trigger selectable in case of drop-off 24 VDC fail-safe signal or main power supply

Specifications

Power Source

Electric

Product Type

Linear Electric Actuator

Actuation

Electric

Certifications

ATEX, IECEx ,UL ,CSA

Control Type

On/Off, Continuous Modulation

Valve Type

Ball, Butterfly, Plug, Dampers, Globe

Torque/Thrust

Switch off thrust electric max. 25 kN (5,620 lbs-ft) and modulating thrust: max. 12 KN (2,697 lbs-ft)

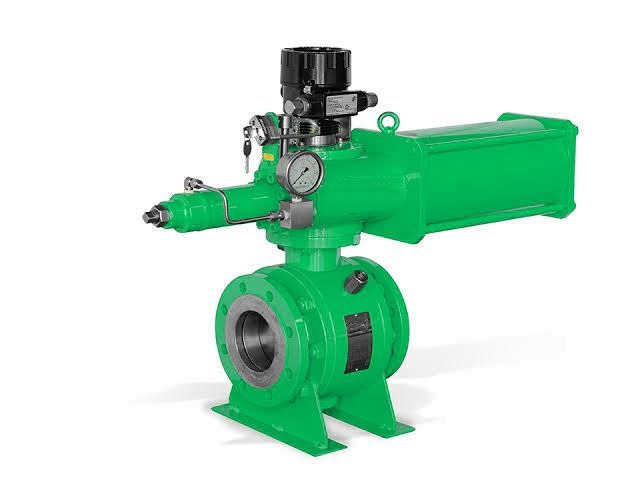

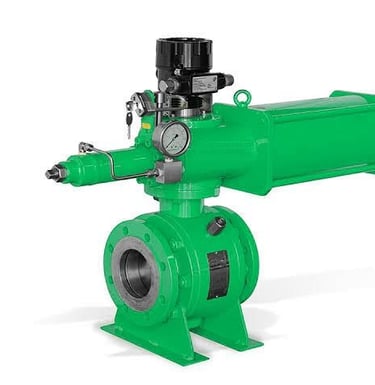

SMART ELECTRO-HYDRAULIC

SMART ELECTRO-HYDRAULIC

Smart Electro-Hydraulic is a self-contained electro-hydraulic actuator designed to actuate quarter-turn valves. It is designed to provide fail-safe actuation for Emergency Shut Down(ESD) valves. Smart has advanced diagnostic capability and can be connected to DCMlink for remote monitorin

Features

· Utilizes a dependable spring-return actuator for the fail-safe stroke combined with an integral hydraulic power pack and electronic control module

· Designed as an emergency shutdown actuation solution to stop process flow upon the detection of a command signal or loss of power, protecting personnel, equipment, and the environment

· Consistently operates in challenging environments, hostile environments, and when power is challenged

· Over fifteen alerts and alarms to help alert users of abnormalities in the system

· Can be integrated into systems with existing common communication protocols and DCMLink

· Communication Protocols- HART and FOUNDATION Fieldbus, DCMlink configuration and monitoring software compatibility

· Environmental Protection: Control enclosure: IP68, Hydraulic actuator: IP67M, Motor: IP68

Specifications

Power Source

Electro-Hydraulic

Product Type

Electro-Hydraulic Actuator

Actuation

Spring-return

Certifications

FM, ATEX, IECEx, PESO, CCOE, CSA, SIL 3

Control Type

On/off, ESD

Valve Type

Ball, Butterfly, Plug, Triple Offset

Operating Temperature

Standard -20°F to +140°F (-29°C to +60°C). Optional temperature -40°F to +140°F (-40°C to +60°C).

Torque/Thrust

1,264 to 707,696 in-lbs

Operating Pressure

up to 3,000 psi

.,

Quarter-Turn Electric Actuator

A Non-Intrusive Intelligent Fail-Safe Quarter-Turn Actuator For ON/OFF And Modulation Control In Fail-Safe Applications. The Robust And Compact Mechanical Spring Return Design Can Be Triggered To Fail-Safe Action Either On Loss Of Power Or Signal. With No Dependency On Super-Capacitor Or Battery-Backup, This State Of The Art Design Is Widely Used On Valves For Oil & Gas, Power, Chemical, HVAC, And Water And Wastewater Industries..

Features

· Intelligent and non-intrusive

· On/Off (S2) and Continuous modulation (S9)

· Up to 3687 ft-lbs ( 5000 Nm) Electric Torque

· Mechanical driven fail-safe operation ( Fail Clockwise or Counter-Clockwise )

· Direct coupling on the fail-safe with the valve shaft

· Adjustable speeds

· Fail-safe trigger selectable in case of drop-off 24 VDC fail-safe signal or main power supply

· Position resolution .1%

· SIL3 capable

· Option De-clutchable handwheel

· Rotatable in 90 degree steps with remote mounting option

· Local User Interface with wireless Bluetooth® control capability for configuration, monitoring and diagnostics.

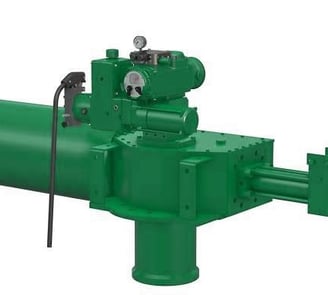

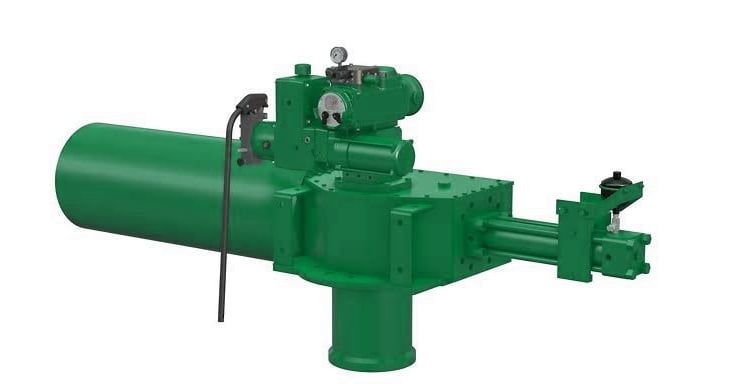

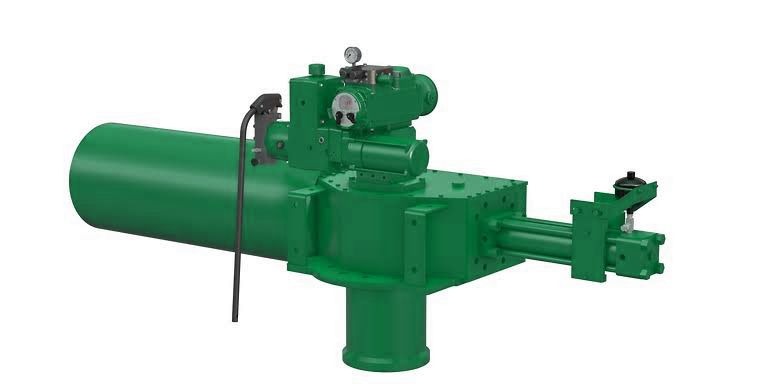

Hydraulic Valve Actuator

Mobile Shelving

Hydraulic, scotch yoke, valve actuator is used for operating ball, butterfly or plug valves along with louvers, dampers and other 90 degree rotating mechanisms. Suitable for use in demanding SIL-required application

Features

· Consistently operates in challenging environments, hostile environments, and when power is challenged

· Modular design improves efficiency reduces wear extends life

· Tension device positively locks the spring module to allow its safe removal and installation, eliminating accidental release of the spring force

· Meets both IP66 and IP67M specifications for submergence and high pressure water deluge test and offers superior water ingress and corrosion protection

· Offers multiple configurations, with a modular design that enables safe field maintenance and reduced inventory costs

· Interchangeable power and spring modules for quick reversal of the fail-safe mode

· Suitable for use in demanding applications requiring SIL environment

Specifications

Power Source

Hydraulic

Product Type

Hydraulic Actuator

Actuation

Fail-Safe, Quarter-turn, Spring-Return, Double-Acting

Certifications

ATEX, PED, (CE), SIL capable,TRCU/EAC/GOST, ABS

Control Type

On/off

Valve Type

Ball, Butterfly, Plug, Triple Offset Valves, Other Quarter-Turn Devices

Operating Temperature

Standard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C)

Torque/Thrust

Spring-return models in excess of 3,000,000 lbs-in (339,000 Nm), Double-acting 12,581 - 6,000,000 lbs-in (1420 - 678,000 Nm)

Operating Pressure

Up to 5,000 psig (345 bar)

Operating Pressure

up to 5,000 psig (345 bar)

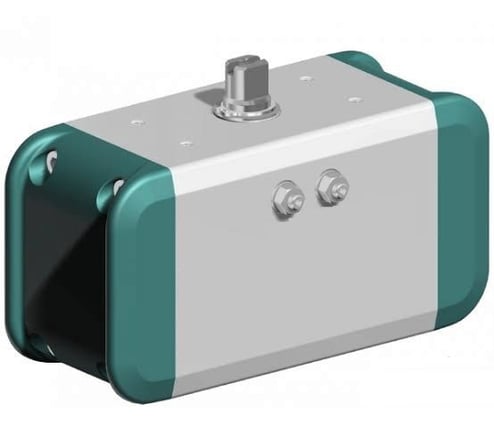

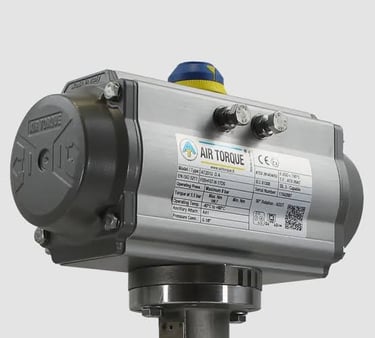

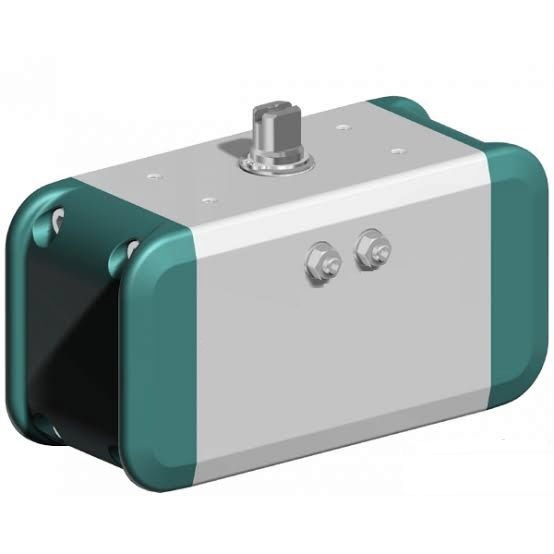

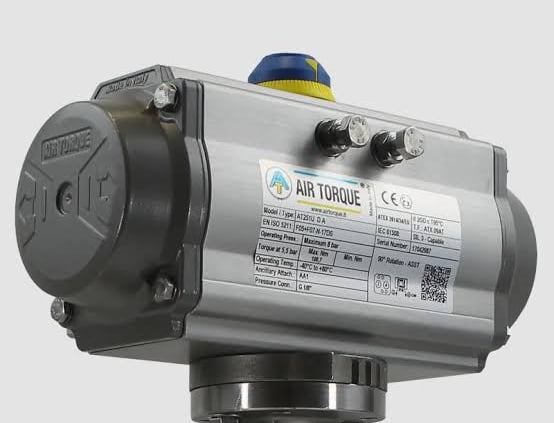

Pneumatic Rack and Pinion Actuator

Mobile Shelving

Pneumatic Rack & Pinion Actuator, available in 12 sizes as spring return or double acting models. The actuators have a tough and reliable design and are intended to operate quarter turn valves or any other quarter turn application. It comes with coated body and endcaps, has a special high corrosion resistant aluminium pinion design and has stainless steel fasteners, resulting in a long lasting durable actuator design.

Features

· Heavy duty body castings provide maximum protection in the harsh environment of process plant locations.

· Polyurethane powder coating provides excellent corrosion resistance on housing and end caps.

· One piece blow-out proof, pressure balanced, pinion allows safe in-field re-configuration from Fail-Close to Fail-Open.

· The aerospace type alloy 7075 T6 for the pinion, provides the best combination of corrosion resistance, high strength and a lightweight construction as well as providing protection against galvanic corrosion.

· Precision dual stroke adjustment provides accurate and intuitive end of stroke adjustment for the Open and Closed valve position.

· Low maintenance bearings for pistons and pinion.

· Accurately designed and machined components assure a perfect fit and long cycle life.

· Stainless steel coated fasteners.

· Dual ISO 5211 mounting patterns allow low-profile direct mounting to valves.

· Drive inserts on the valve flange make direct mounting flexible, either for square, flat head, or round with key way stems.

Specifications

Power Source

Pneumatic

Product Type

Pneumatic Rack and Pinion Actuator

Actuation

Double-acting, Spring-return, Quarter-turn

Certifications

ROHS3, REACH, ATEX, PED and Machinery Directives, SIL3, IP66/67

Control Type

On/Off, Positioning, Modulating, ESD

Valve Type

Ball, butterfly, plug and any other quarter turn application

Operating Temperature

Standard -20°C to +80°C (-4°F to +176°F). Optional high and low temperature options

Torque

12 sizes: 12 to 4100 Nm (106 to 36,474 lbf.in)

Operating Pressure

up to 8.3 bar / 120 psi
