Industrial Vision Cameras

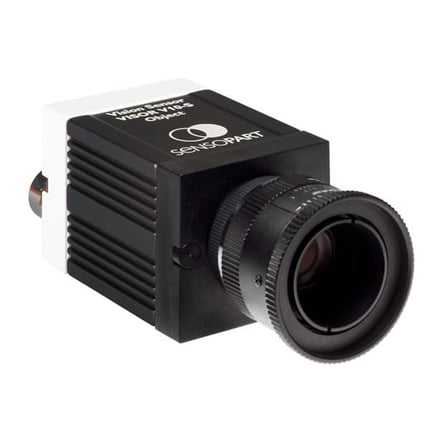

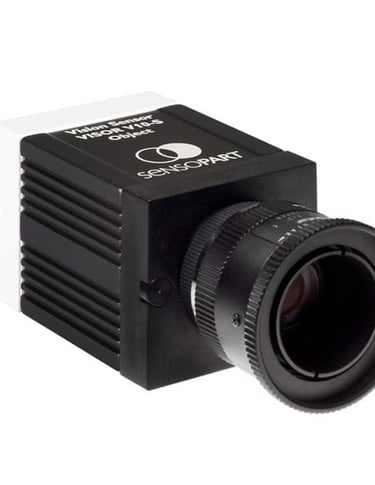

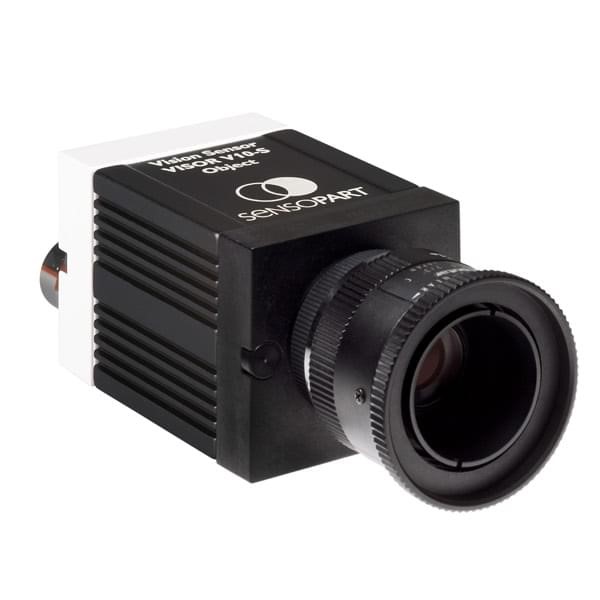

All-in-one GigE Vision cameras

All-in-one GigE Vision cameras

Space-saving, robust and fast integrated image acquisition

• Ultra-compact and integrating all in one: autofocus, lens and segmentable lighting

• Standard-compliant with GigE Vision

Industrial cameras are a complete image acquisition solution for industrial image processing.

PC-based GigE cameras dominate industrial image processing. However, overall image acquisition requires more components such as lens, flash controller and lighting. To realize a particular protection class or to prevent unwanted access, additional enclosures are often necessary.

The cameras already integrate autofocus, lens and segmentable lighting and thus set standards as all-in-one GigE Vision cameras which are ready to use in factory automation applications.

· Ultra-compact: Highly integrated camera with autofocus and segmentable lighting – for fast integration, less components and cabling effort.

· Standard-compliant: The GigE Vision interface allows seamless integration into infrastructure and software.

Process-safe: The industrial housing with IP 67 protection withstands water, dust and unauthorized camera access. In combination with the clip-on polarizing filter preventing image reflections, it supports a high level of process safety

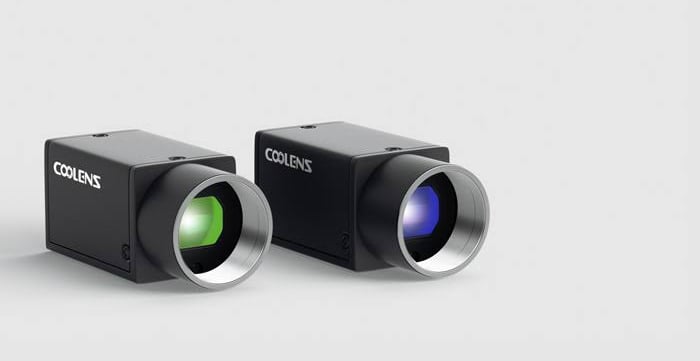

High- Resolution Fast Camera

Long Span Shelving

High-resolution and fast

The cameras allow you to implement image processing tasks in line with the highest requirements for resolution, frame rate, and image quality. Full flexibility is provided both by the high-resolution CMOS sensors up to 65 megapixels and the choice of Camera Link, Dual GigE or 10 GigE interfaces.

Thanks to the extensive sensor portfolio of, the powerful industrial cameras provide excellent image quality with exceptional sensitivity, low dark noise, and very high dynamics. This allows them to reliably detect the finest details and deviations at all times – even in high-speed processes.

benefits

• Flexible cross-sector solutions for applications

  • Large range of CMOS sensors up to 65 MP

  • Frame rates of up to 1622 fps

  • High-performance functions such as auto features, IEEE 1588 Precision Time Protocol (PTP), Sensor Multi ROI, shading correction, HDR, Burst Mode, 5×5 color calculation

  • 4 power outputs with max. 120 W (max. 48 V / 2.5 A)

  • Models with integrated JPEG image compression

  • Models with Canon EF mount

  • Models with Dual GigE, 10 GigE, and Camera Link interface

  • Models with SFP+ interface for optical cables

• Dynamic adjustment to varying working distances and changing lighting conditions

  • Models with liquid lens support for electronically focused liquid lenses

  • Models with Canon EF mount for the dynamic adjustment of focus and aperture

• Easy implementation of fast or light-intensive applications

  • Models with short exposure times from 1 µs

• Easy evaluation thanks to image enhancement

  • Models with shading correction, HDR, 5×5 color calculation

  • Models with improved FPNC for correction of pixels in the vertical direction

• Increased reliability coupled with reduced system and integration costs

  • Replace several high-resolution cameras with a single 65 MP camera

  • Power over Ethernet (PoE) or Power over Camera Link (PoCL)

• Precise image analysis with lasting stability

  • Robust industrial design

  • Models with an extended operating temperature -30 °C to 65 °C

  • Thermally optimized accessories to achieve IP 65 / IP 67 protection class

• Flexible and quickly integrated

  • Compact 60 × 60 mm housing with all-round M3 mounts

  • Modular support of M42 or F mount lenses for M58-based camera models

• Short transmission and response times

  • 10 GigE models provide a high bandwidth of 1.1 GB/s: 10 times faster than GigE, 35 percent faster than Camera Link Full

• Bridging large distances

  • Support of optical cables for distances up to 10 km.
