Industrial Computers

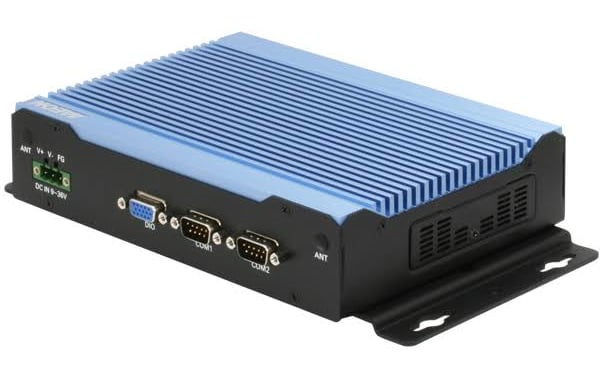

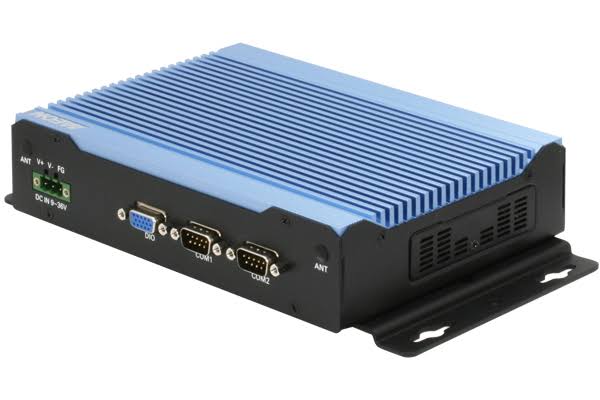

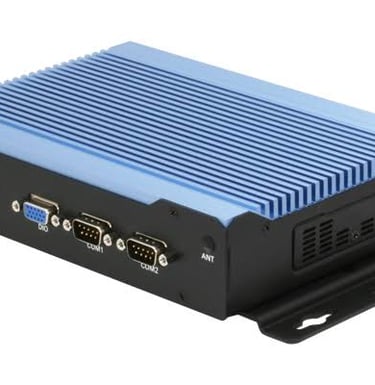

Intel Atom Class Box PC

· Includes Intel Apollo Lake Atom processor, which are ideal for human machine interface (HMI), IIoT gateway and data logging applications

· Available in single DisplayPort units that support up to 4K high resolution and feature 2x Ethernet and 2x USB 3.0 (Type A) ports

· Offers robust mass storage supplied by an M.2 SSD up to 240 GB (PC Only)

· Offers 4 GB or 8 GB DDR4 RAM that is permanently soldered to the motherboard to help prevent issues from shock and vibration

· Offers fanless, book mount construction, which is optimal for applications requiring low maintenance

· ThinManager compatible

Operating system

Microsoft Windows 10 IoT Enterprise LTSC 2019 64 bit

Processor

Intel Atom x7-3950 1.6 GHz (2.0 GHz Burst), 4 cores/4 threads, 2 MB L2 cache)

Video controller

Intel HD Graphics 505 integrated in x7-3950, 500/650 MHz

System memory - RAM

4 GB/8 GB, LP-DDR4 - 2400 (soldered)

Mass storage

M.2 size 2242 key B SSD SATA III (up to 240 GB)

LAN

2 x Ethernet 10/100/1000 Mbps (Intel I210, RJ45)

USB

Single DisplayPort - 2 x USB 3.0 (Type-A) / Dual DisplayPort - 4 x USB 3.0 (Type-A)

Video output

1 x DisplayPort or 2 x DisplayPort (model dependent)

Audio output

Standard 3.5 mm audio output jack (Only available on Dual Display model)

Power

24V DC (18...32V DC) isolated

Mounting

DIN rail mount, wall mount (single Display Port model)

Case material

Aluminum alloy

Operating temperature

0...50 °C (32…122 °F)

Storage temperature

-10...+60 °C (+14…140 °F)

Approvals

· CE (EN 61326-1, EN 61010-1, EN 61010-2-201)

· cULus Listed (UL61010)

· RCM

Humidity

80% (non-condensing)

Note: Thin Client ships without SSD or OS

Intel Atom Class Box PC

Intel Core i Class Box PC

Long Span Shelving

Intel Core i Class Box PC

· Includes Core i3, i5 and i7 dual and quad core 7th generation 64-bit processors for mid-size applications

· Provides 4 x Ethernet, 3 x USB 3.0 (Type A), 2 x USB 2.0 (Type A), 1 x RS-232 (DB9M), 1 x DVI-D

· Offers up to 3 PCIe expansion slots

· Available in a fanless design with book mount, wall mount, 24V DC

· Available as a fan cooled unit with wall mount, which perform well in challenging environments with elevated temperatures

6300B-BMB

6300B-PBC

6300B-PBD

6300B-JB1

Operating system

Windows 10 IoT Enterprise 2019 64 bit or no OS

Windows 10 LTSC 2021 or no OS

Processor

Intel Core i3-7100E 2.90GHz 64bit, 2 cores / 4 threads, 3MB Smart Cache

Intel Core i5-7440EQ, 2.90 GHz (3.60GHz Turbo), 6MB Smart Cache, 4 cores, 4 threads

Intel Core i7-7820EQ 3.00 GHz (3.70GHz Turbo) 64-bit, 4 cores / 8 threads, 8MB Smart Cache

Intel Core i3-7101E 3.9Ghz, 2 Cores - 4 threads - 3MB Smart Cache

Intel Core i5-7500, 3.40 GHz (3.80GHz Turbo) 6MB Smart Cache, 4 cores - 4 threads

Intel Core i7-7700 3.6 GHz (4.2GHz Turbo), 4 Cores - 8 threads - 8MB Smart Cache

Intel Celeron 6305E 1.8GHz, 2 cores - 2 threads - 4MB Smart Cache

Intel Core i3-1115G4E 2.20GHz (3.90GHz Burst), 2 cores - 4 threads - 6MB Smart Cache

Intel Core i5-1145G7E 1.50GHz (4.10GHz Burst), 4 cores - 8 threads - 8MB Smart Cache

Intel Core i7-1185G7E 1.80GHz (4.40GHz Burst), 4 cores - 8 threads - 12MB Smart Cache

Chipset

Intel HM175 PCH (Platform Controller Hub)

Intel C236 PCH (Platform Controller Hub)

Intel Tiger Lake PCH (Platform Controller Hub), Included into processor chip (SoC)

Video controller

Intel HD Graphics 630 integrated into Intel Core microprocessor 950 MHz/1 GHz Video RAM (shared)

Intel HD 630 Graphics integrated in Intel Core i3 & i5 350 MHz/1.10 GHz

Intel HD 630 Graphics integrated in Intel Celeron microprocessor Intel Core i7 350 MHz/1.15 GHz

Intel UHD Graphics integrated in Intel Celeron, Intel Core i3-1115G4E and i3-1115GRE

Intel Iris X Graphics integrated in Intel Core i5-1145G7E, i7-1185G7E

System memory – RAM

Up to 32GB DDR4-2400 2 SODIMM modules

Celeron: 4 or 8GB (LPDDR4X)

i3, i5: 8 or 16GB (LPDDR4X)

i7: 16 or 32GB (LPDDR4X)

Mass storage

Up to 1 TB 2.5” SSD SATA III 1 x mSATA SATA III interface

Up to 1 TB 2.5” SSD SATA III 1 x M.2 2280 onboard connector, PCIe

No Storage

128 GB … 2 TB M.2 SSD (NMVe)

LAN

4 x Ethernet 10/100/1000 Mbps (RJ45)

Video output

1 x DVI-D Single Link (max resolution: 1920x1080 Full HD)

2 or 4x DisplayPort++ V1.2

Power

24V DC (18…32V DC) isolated

100V/230V AC

24V DC (18V to 32V DC) isolated

Operating temperature

0…50 °C (32…122 °F) with Core i3 processor

0…45 °C (32…113 °F) with Core i7 processor

0…50 °C (32…122 °F)

0…50 °C (32…122 °F)

Storage temperature

-10…+60 °C (14…140 °F)

-20…+65 °C (-4…+149 °F)

Approvals

· CE (EN 61326-1, EN 61010-1, EN 61010-2- 201)

· cULus Listed (UL61010)

· RCM

· KC

Serial

1 x RS-232 (DB9M)

1 x RS-232 (DB9M; four display only)

USB

1 x USB 3.0 front (Type-A)

2 x USB 2.0 top (Type-A) + 2 x USB 3.0 top (Type-A)

4x USB 3.1 Gen2 (Type-A)

Mounting

Book mount only, fan or fanless option

Wall mount only, fanless

Wall mount only, with fan

DIN Rail or book mount, fanless

Expansion slots

No expansion

1 PCIe x4 and PCI half size

2 x PCIe x4

No expansion

1 PCI/PCIe

2 slots for 2.5'' HDD/SDD (RAID 1)

No expansion

1PCIe x16

1PCIe x16, 1PCIe x4, 1PCIe x1

2 x PCIe x8 + 1x PCIe x4

No expansion

Battery

1x (CR2032 or BR2032) Internal access

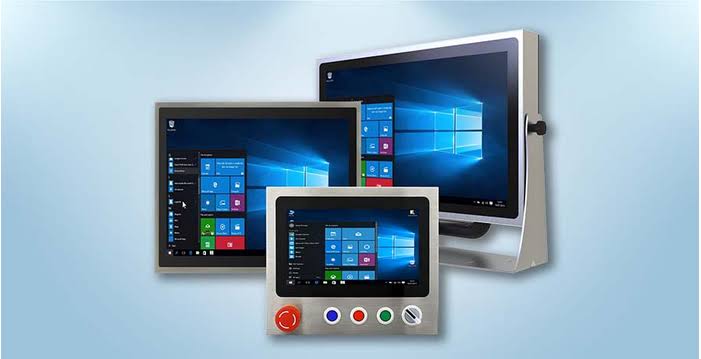

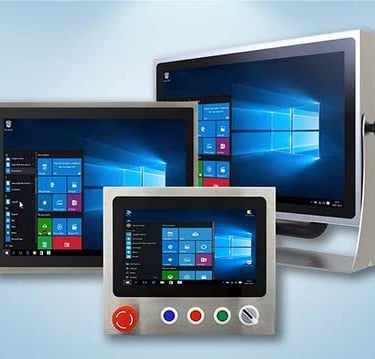

Panel PCs

Panel PCs

Panel PCs are based on the seventh generation Core i3, i5 and i7 Intel Kaby Lake H and Intel Celeron Skylake processors to handle complex industrial applications. Touch screen technologies, which enhance ease of use, include analog resistive and projected capacitive (for multitouch operation). This panel PC is available in a variety of display sizes and resolutions. There are options of either Standard or Low Profile bezel units. Both have resolutions up to full high definition.

IP65/IP66 (model dependant) environmental protection makes the Panel PC an excellent match for washdown applications such as food processing and life sciences. Fanless construction helps to ensure low maintenance operation and enhance longevity.

PCs enhance cybersecurity by integrating software. Multiple PCs with locally stored applications spread across a plant floor can increase the attack surface and security risks. ThinManager software allows applications to run and be maintained from a central and secure location. The new ThinManager-ready BIOS comes preinstalled in the industrial computers allowing you to take a new computer out of the box and place it directly into your ThinManager environment. The ThinManager console downloads all of the necessary application firmware and software without the need for Pre-Execution (PXE) or DHCP infrastructure. Just change the boot order on the new computer, define its IP address, and boot it into ThinManager. With over 100,000 configurations to choose from, the built-in ThinManager-ready BIOS is an industry exclusive. Plus, you’ll have guaranteed support from for your entire ThinManager system.

These PCs also contain a USB port on the back of the unit, which is sealed with a threaded cap that makes it easy to connect peripherals temporarily, adding the ability to replace the cap later to preserve the IP65 rating

Overview

· Available in landscape and portrait versions:

o Landscape with 15.6”, 18.5”, 21.5” and 24” TFT LCDs in wide aspect ratio

o Portrait with 21.5” and 24” TFT LCDs in wide aspect ratio

· Features Full HD resolution

· Offers various exterior features:

o VESA 75/100 mounting

o Powder coated die-cast aluminum chassis with anti-scratch treatment

o Full IP65 ingress protection with UL Type 1 and 4X (indoor) ratings

· Bezels are aluminum and glass True Flat frames with multitouch projected capacitive touch screens

· Features options such as:

o Factory-configured button area with 22 mm pilot devices

o CPU options for Intel Celeron, i3 and i5 processors

Modular swing arm systems

Mobile Shelving

Modular swing arm systems

The continuing reduction of control cabinets in particular is increasing the need for input stations that can be installed flexibly. Fully enclosed panels with IP65 protection offer decisive advantages when it comes to positioning operator terminals at the most convenient locations on the machine. For this reason, completely enclosed Automation Panel and Panel PC variants are available for mounting on swing arm systems.

Highlights

• Intel Atom E3800 processors

• Up to quad-core CPU performance

• Extremely powerful graphics

• 2x Gigabit Ethernet

• Fanless

Communicative in all directions

The Panel PC integrates all important interfaces, including 2x Gigabit Ethernet as well as 1x USB 2.0 and 1x USB 3.0. In addition, fieldbuses such as POWERLINK and CAN can be implemented via modular interface modules. For data storage, MLC-based CFast cards are available that can store up to 256 GB or more.

4:3

Diagonal

15"

19"

Resolution

1024 x 768

1280 x 1024

Touch screen

Analog resistive

Analog resistive

SDL/SDL3

✓

✓

Operating and switching elements

-

-

Front USB

-

-

Orientation

Landscape

Landscape

Power supply

24 VDC

24 VDC

.

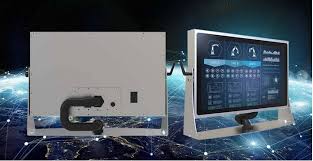

Hygienic - Stainless steel - Panel PCs

Hygienic - Stainless steel - Panel PCs

In addition to standard operator panels, that meet the requirements unique to specific industries.
Especially in the beverage, foodstuffs, pharmaceutical and packaging industries, systems must meet stringent requirements with respect to hygiene, robustness and reliability. The special construction of B products ensures that they do.

stainless steel Panel PCs feature a hygienic design and use especially resistant materials such as smooth stainless steel, a high-quality polyester overlay and special sealing materials.

Highlights

• Stainless steel material 1.4301, smoothed surface

• IP69K protection (front)

• Projected capacitive multi-touch or analog resistive single-touch screens

• Displays from 15" XGA to 24" Full HD

• Shatter protection

• Glove operation possible

• Unique sealing system eliminates gaps

• Swing arm - Flexible installation on top or bottom

• Connections for DVI, SDL, SDL3, SDL4, Panel PC

Touch screen - Swing arm panels - Safe and intuitive

The stainless steel swing arm panels are equipped with multi-touch or single-touch screens. These are easy and intuitive to use. Operational security is increased by ensuring that only sensible options are displayed on the screen. As a result, the possibility of error is kept to a minimum. The application determines which operating states are available for selection. This helps the user confidently navigate step-by-step through more complex procedures. The touch screens themselves have a smooth surface so that their integration in the operator panel allows them to continue meeting strict hygienic requirements.

The dimensions of the Panel PCs were designed to make it especially sleek. This means that additional handles are not necessary. A protected rear USB interface is a standard feature. A standard swing arm system can also be installed there
