Spectrometer
We offer a range of industrial and Scientific Spectrometer for Elemental Analysis .Spectrometry is a vital tool in scientific analysis, focusing on the interactions between light and matter to assess radiation intensity and wavelength. This technique allows researchers to study and quantify specific spectral information about a variety of sample materials, playing a crucial role in fields such as chemistry, biology, and environmental science. A prominent example of spectrometry is mass spectrometry, which specifically measures the masses of chemical constituents by evaluating their mass-to-charge ratios. The process typically involves ionizing the particles with electrons and subsequently separating them in a magnetic field, which causes different degrees of deflection based on their mass. This separation enables precise measurement of the particles, providing invaluable insights into the composition and structure of the chemical sample under investigation. Through these methods, spectrometry contributes significantly to advancements in scientific research and industry applications.

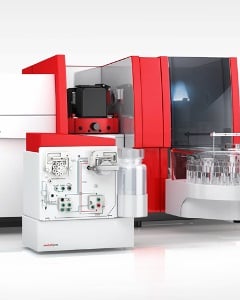

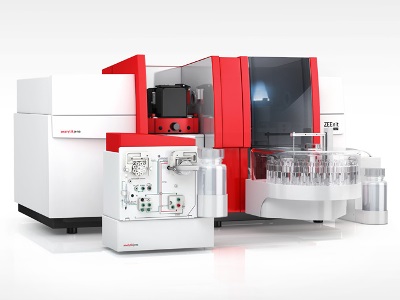

Atomic Absorption Spectrophotometer
Atomic Absorption Spectrophotometer is a double beam with sealed and vibration free optical system, having Czerny-turner Monochromator with Holographic grating (1800 lines/mm). It’s a high performance automated instrument designed to meet the requirements of the modern laboratory.laboratory. Due to its versatility and performance it can be used for a wide range of applications including: Agriculture, Soil, Environmental, Food, Metal, Mining, Petrochemical, Clinical, Pharmaceutical.
Specificationwavelength Range 185nm – 915nm
Optics True double Beam, Sealed & Vibration free optical system with a reflective optical compartment.
Detector PMT (wide range)
Monochromator Czerny-turner type with Holographic Grating of 1800 lines/mm and Reciprocal Linear Dispersion better than 1.6 nm/mm, focal length 300mm.
Spectral Bandwidth Adjustable slit from 0.1 nm. to 2 nm. (software selectable)
Wavelength Accuracy ±0.15nm
Wavelength Reproducibility < 0.05nm
Resolution 0.2nm ± 0.02nm
Baseline stability 0.005A/30min
Sensitivity(Cu) >0.9 Absorbance or better for 5 ppm Cu solution
Detection Limit Cu < 0.004 μg/ml (flame) Cd < 0.4 x 10-12 g (graphite furnace)
Repeatability Cu < 0.7% ( Air/Acetylene flame)
Ba < 1.0% ( Nitrous oxide/Acetylene flame)
Cu < 2.0% Cd < 2.0% (Graphite Furnace)
Background Correction Deuterium Arc / Self reversal upto 2.5 Absorbance
Characteristic correction Cu < 0.02 μg/ml, Ba < 0.15 mg/ml (NO/Acetylene) Burner Heads
Nebuliser High Efficiency Nebuliser
Burner Head Titanium Alloy
Atomization Chamber Corrosion-resistant material
Position Adjustment Automatic changeover
Automatic Setting of Optimum Height for Flame Burner.
Burner movement in horizontal & vertical direction by software.
Safety Functions (Interlocks) Burner Identification, Flame Sensor, Gas leak Sensor, Low Gas Pressure Sensor, Drain Trap Sensor, Power Loss Protection, Circulation Water (graphite), Over Temperature Sensor (graphite)
UV Double Beam Spectrophotometer
UV Double Beam Spectrophotometer
we manufacture state-of-the-art Spectrophotometers ranging from fully automatic ones to UV-VIS Spectrophotometers. The spectrometer is a highly flexible, versatile and high-quality instrument that is carefully crafted for the modern laboratory.
Standard Features of Double Beam Spectrophotometer - UV
· The All-aluminium die-casting base make the instrument stronger and more durable. High-resolution TFT colour LCD touch screen provides excellent display effect and simple operation with built-in computer (2GB memory/64GB SSD storage, 178 degree full view, 16 million colours, high resolutions, 10.1 inch IPS colour LCD touch screen, capacitive 10-point touch control) provides excellent display effect, simple operation and good scalability; Wide sample room, suitable for 5-100mm sample cell holders and other accessories; Start-up self-calibration system and warm-up countdown; Automatically move the wavelength to the set position, and automatically do zero; Connect with a printer directly and output measurement results; Connect with a PC by USB, and control the instrument by software, to enrich and expand the application; Support upgrading firmware by USB storage directly.
The software design fully complies with the requirements of 21CFR stipulated in Pharmacopoeia, and has perfect GLP/GMP functions, which can effectively trace and manage the instrument performance and measurement dataOptical system Double beam with Czerny-Turner Monochromator
Light source Tungsten and Deuterium Lamp, pre-aligned
Spectral bandwidth 0.5, 1, 2, 4, 5 nm
Wavelength range 190 ~ 1100 nm
Wavelength accuracy ±0.3 nm ( full range 190nm - 1100nm)
Wavelength repeatability 0.1 nm
Wavelength resolution 0.1 nm
Scanning speed 1 to 3000nm/min variable
Photometric range -4 to 4.0A
Photometric accuracy 0.5A ± 0.002 A
Noise 0.000016 Abs RMS@500nm
Drift < 0>
Baseline flatness ±0.001 A
Stray light 0.02 @ 220nm KCL 198nm = 1% T
Optional Accessory Specular Reflection Accessory, Integrating Sphere 60mm / 100mm
Automatic 8 Cell Changer, long path cell holder, Peltier Solid Sample holder etc.
Photometric mode Photometry, Quantitation, Spectrum, Kinetics
Detector Dual Silicon photodiode
Lamp Interchange Wavelength Automatic interchange linked to wavelength. The interchange wavelength can be set freely
Wavelength Slew Rate 6500 nm/min
Sample cell holder Pair of 10 mm cell holder upgradable to automatic 8 cell changer
Display 10.1 Inch IPS colour LCD touch screen, capacitive 10-point touch control (resolution: 1280×800), 2GB memory/64GB SSD storage, 178 degree full view, 16 million colours, high resolutions, 10.1 inch IPS colour. Embedded Operating system, with sealed membrane.
Software Complies with the requirement of 21CFR Part 11 with GLP/GMP functions, file management functions.
Storage 64GB (built-in), unlimited expansion (USB storage, SD card, network storage device)
Interface USB-A (extensible; connect USB printers, storages, mice, keyboards and other peripherals)×3, USB-B (PC)×1, RJ 45 (Ethernet)×1, VGA×1, HDMI×1, Bluetooth, WiFi
Power 100 ~ 240 V AC, 50/60 Hz, 100 W
Dimension 600*450*200 mm
